WSE2联网扩展系列7-打造专属玩家账户系统|实操

zz010606 · 发表于 2025-6-8 19:14:24

本帖最后由 zz010606 于 2025-6-8 19:27 编辑

WSE2联网扩展系列7-实操教程：

实现玩家登录功能的模组开发指南

在本期教程中，我们将深入讲解如何利用WSE2联网扩展为你的模组添加玩家账户功能。从基础配置到代码实现，手把手教你完成身份验证系统，确保玩家可以安全登录并保存个人数据。

账户系统的作用：

1 让玩家的进度、装备、金币等需要联网保存的数据不会随着存档丢失，可以长期保存，避免每次开新存档就重置。
2 个性化体验：让每个玩家拥有独特的游戏身份，支持扩展更多功能。
3 多人联机整合：结合WSE2的联网功能，实现玩家间的数据交互，如公会系统、排行榜或交易市场。【排行榜和交易市场我已经都代码实现，后续会逐步开源】
4 安全性与反作弊：通过追踪账户信息，可以防止通过单机的作弊功能作弊，确保联机环境的公平性。

无论你是想为模组添加完整的联网内容，还是仅仅需要一个基础的账户系统，这篇实操指南都将提供清晰的步骤与实用技巧，帮助你快速实现功能！

注：本位最终实现结果为：玩家可以通过账号密码登录，并且也可以登出。若登录成功，则云端会生成一份token并返回给骑砍。

【注】本文将有大量源码+实操教程。需要MS基础知识、web基础知识、数据库基础知识、登录鉴权token的基础知识。不适合纯小白。

一、前期准备：

1给你的MS添加好WSE2且安装好相关WSE2的SDK，若不知道如何安装WSE2的SDK，可以去这个链接：(1) Warband Script Enhancer 2 (v1.1.3.6) | TaleWorlds Forums

2相关环境：python3环境、python3的flask库、flask_mysqldb库。【您若懂web，可以不需要用楼主的flask库，选择任何您觉得喜欢的库即可，如java的springboot库】

3准备云服务器一台。确保服务器的80端口可被访问到。

二、数据库设计

【如果不懂数据库，可以把我下面的内容问问 deepseek】

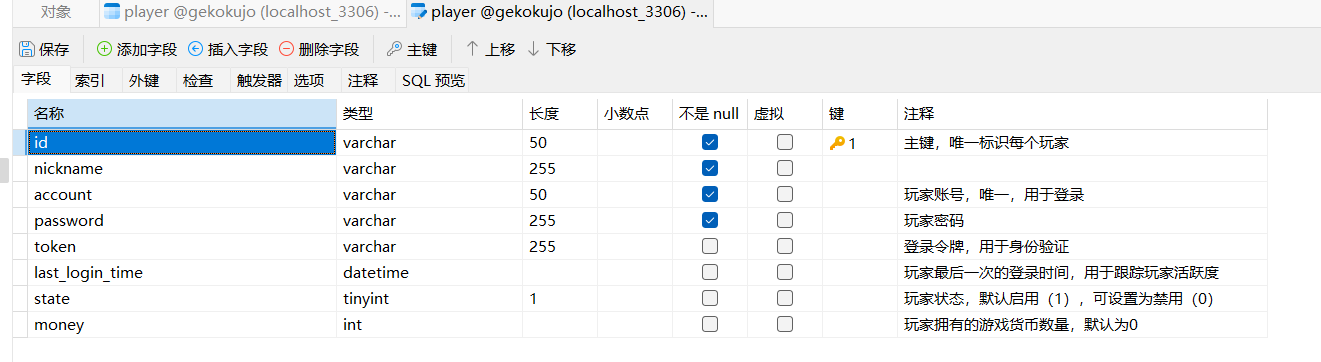

数据库中添加表"player",添加字段："id" 、"account"、"password"、"token" "nikename"【这四个字段是必须要的，我的图片里还有其他字段，可以不添加】

id是唯一主键，用于确保每条玩家信息唯一.

account是玩家的账号

password是玩家的密码

token是请求令牌，您不知道这有什么用没关系，但这个登录和拓展其他所有功能必须要的功能。

往表里添加一条记录 id："001" nikename:"玩家1" account:"user01" password:"admin" token:"" 【token先空着】

三、骑砍的 MS代码设计

module_game_menu.py添加一个网络菜单：

1您可以将这个菜单添加到任何菜单底下，我是添加到camp菜单内

("camp",mnf_scale_picture,
"You set up camp. What do you want to do?",
"none",
[
(assign, "$g_player_icon_state", pis_normal),
(set_background_mesh, "mesh_pic_camp"),
],
[
("camp_action_1",[(eq,"$cheat_mode",1)],"{!}Cheat: Walk around.",
[(set_jump_mission,"mt_ai_training"),
(call_script, "script_setup_random_scene"),
(change_screen_mission),
]
),
#添加这些内容-开始# # #
("camp_network_menu",[], "Network Content",
[
(jump_to_menu, "mnu_camp_network_menu"),
]
),
#添加这些内容-结束

复制代码

结果展示：

2现在开始写这个菜单具体的代码

#网络菜单开始-
("camp_network_menu",mnf_scale_picture,
"Install WSE2 to use network functions",
"none",
[
(set_background_mesh, "mesh_pic_camp"),#设置背景图片
],
[
("network_login",[
(eq,"$g_network_state",0),
],"Log in.",#登录
[
(start_presentation, "prsnt_network_login"),
]
),
("network_logout",[
(eq,"$g_network_state",1),
],"Log out.",#登出
[
(send_post_message_to_url_advanced,"str_network_doLogout_url","@version=1.0&token=12345",s0,"script_network_logout", "script_network_fail", 0),#这里的"@version=1.0&token=12345"是随便写的，可以为任意值
(jump_to_menu,"mnu_camp"),
]
),
("network_back",[],"back.",
[
(change_screen_return),
]
),
]
),
#网络菜单结束-

复制代码

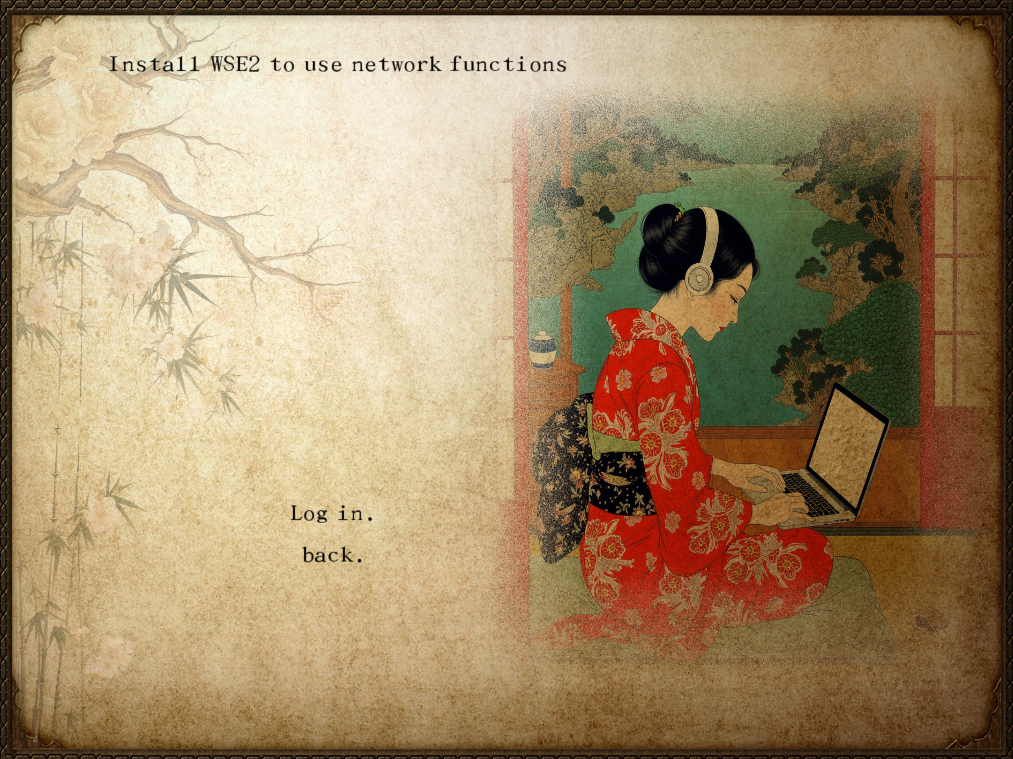

结果展示：

3现在开始写具体的登录界面,请在module_presentation.py添加下面代码

#网络登录界面
("network_login",0,mesh_load_window,[
(ti_on_presentation_load,
[(set_fixed_point_multiplier, 1000),
(str_store_string, s1, "@network login"),
(create_text_overlay, reg1, s1, tf_center_justify),
(position_set_x, pos1, 300),
(position_set_y, pos1, 500),
(overlay_set_position, reg1, pos1),
(overlay_set_text, reg1, s1),
(str_store_string, s1, "@network password"),
(create_text_overlay, reg2, s1, tf_center_justify),
(position_set_x, pos1, 300),
(position_set_y, pos1, 400),
(overlay_set_position, reg2, pos1),
(overlay_set_text, reg2, s1),
(create_simple_text_box_overlay, "$g_presentation_obj_name_login"),
(create_simple_text_box_overlay, "$g_presentation_obj_name_pwd"),
(position_set_x, pos1, 500),
(position_set_y, pos1, 500),
(position_set_x, pos2, 500),
(position_set_y, pos2, 400),
(overlay_set_position, "$g_presentation_obj_name_login", pos1),
(overlay_set_position, "$g_presentation_obj_name_pwd", pos2),
(create_button_overlay, "$g_presentation_obj_name_network_commit", "@Continue...", tf_center_justify),
(position_set_x, pos1, 350),
(position_set_y, pos1, 200),
(overlay_set_position, "$g_presentation_obj_name_network_commit", pos1),
(create_button_overlay, "$g_presentation_obj_name_network_cancel", "@Cancel", tf_center_justify),
(position_set_x, pos1, 550),
(position_set_y, pos1, 200),
(overlay_set_position, "$g_presentation_obj_name_network_cancel", pos1),
(presentation_set_duration, 999999),
]),
(ti_on_presentation_event_state_change,
[(store_trigger_param_1, ":object"),
(try_begin),
(eq, ":object", "$g_presentation_obj_name_login"),
(str_store_string, s7, s0),#s7存账号
(else_try),
(eq, ":object", "$g_presentation_obj_name_pwd"),
(str_store_string, s8, s0),#s8存密码
(else_try),
(eq, ":object", "$g_presentation_obj_name_network_cancel"),
(presentation_set_duration, 0),
(else_try),
(eq, ":object", "$g_presentation_obj_name_network_commit"),
(str_store_string,s0,"str_network_account_and_pwd"),
(send_post_message_to_url_advanced,"str_network_doLogin_url","@user_agent_string",s0,"script_network_login", "script_network_fail", 0),
(presentation_set_duration, 0),
(try_end),
]),
]),
#网络登录结束

复制代码

结果：

4补充全str_network_doLogin_url与str_network_account_and_pwd
请打开module_string.py 添加下面代码：请注意，请把"http://www.xxxxx.com/doLogin"这部分换成你自己的云服的公网ip如 "http://127.0.0.1/doLogin"

("network_show_info","Network Infomation"),
("network_doLogin_url","http://www.xxxx.com/doLogin"),
("network_doLogout_url","http://www.xxxx.com/doLogout"),
("network_account_and_pwd","account={s7}&password={s8}"),

复制代码

5补充上面所有提到的script

请打开module_script.py 添加下面代码：

#接口失败回调
("network_fail", [
(dialog_box,"@网络错误 ", "str_network_show_info"),
(jump_to_menu,"mnu_camp"),
]),
#接口成功回调
("network_login", [#
# (store_script_param, ":num_integers", 1),
# (store_script_param, ":num_strings", 2),
(try_begin),
(eq,reg0,1),
(assign,"$g_network_state",1),
(troop_set_plural_name, "trp_token", s0),#在骑砍存储token值，之后所有的请求就都会带着这个值发给服务器了
(dialog_box,"@登陆成功 ", "str_network_show_info"),#如果接受回来的数据是1就表示成功
(jump_to_menu,"mnu_camp"),
(display_message, s0, 0x66ccff),
(else_try),
(eq,reg0,2),
(dialog_box,"@账号密码错误 ", "str_network_show_info"),#2表示账号密码错误
(else_try),
(eq,reg0,3),#3表示状态有问题
(dialog_box,"@用户状态不可用 ", "str_network_show_info"),
(try_end),
]),
#登出
("network_logout", [
# (store_script_param, ":num_integers", 1),
# (store_script_param, ":num_strings", 2),
(assign,"$g_network_state",0),
(dialog_box,"@注销成功 ", "str_network_show_info"),
]),

复制代码

6请打开module_troop.py 添加下面代码：

#token
["token","token","token",tf_female|tf_guarantee_boots|tf_guarantee_armor,0,0,fac_commoners,[],def_attrib|level(2),wp(40),knows_common,woman_face_1,woman_face_2],
#版本号
["version","version","109",tf_female|tf_guarantee_boots|tf_guarantee_armor,0,0,fac_commoners,[],def_attrib|level(2),wp(40),knows_common,woman_face_1,woman_face_2],

复制代码

四、服务器开发

楼主是采用flask项目架构，分为很多工具py文件和业务文件，解耦程度高。不方便展示。所以楼主把核心内容的“登录”，“登出”功能提炼到一份文件出来：
服务器需要配置python3环境，安装好flask库与flask_mysqldb 库。然后运行本文件即可。
服务器开发部分核心就是登录功能接收到账号密码后进行检验是否对应合理，然后针对结果返回'1"或者“2” ”3“ 。登出核心功能就是根据传输过来的token清楚云端的对应的token。
【但是楼主给的骑砍MS 代码里logout接口其实是废的，没有把token传输过来，这是因为楼主用于实现登出主要是利用MS里$g_network_state这个全局变量，若登出就变为0，这样玩家就进入不到网络接口的菜单里了，就得强制登录了哈哈】

from datetime import datetime
import uuid
from flask import Flask, request
from flask_mysqldb import MySQL
from urllib.parse import parse_qs
app = Flask(__name__)
# MySQL配置
app.config['MYSQL_HOST'] = 'localhost' # 根据实际情况修改
app.config['MYSQL_USER'] = 'root' # 根据实际情况修改
app.config['MYSQL_PASSWORD'] = ' ' # 根据实际情况修改
app.config['MYSQL_DB'] = 'your_db' # 根据实际情况修改
mysql = MySQL(app)
# 工具函数 - 获取成功状态码
def getSuccessStateCode():
return "1"
# 工具函数 - 检查UserAgent
def checkUserAgent(userAgent):
cursor = mysql.connection.cursor()
userAgent = parse_qs(userAgent)
version = userAgent.get('version', [''])[0] # 获取version
token = userAgent.get('token', [''])[0] # 获取token
# 验证Token有效性
cursor.execute("SELECT id FROM player WHERE token = %s", (token,))
user = cursor.fetchone()
if not user:
return '4', token # Token无效
# 检查版本是否匹配
cursor.execute("SELECT version FROM mod_update_logs ORDER BY update_date DESC LIMIT 1")
latest_version = cursor.fetchone()
if latest_version:
latest_version = latest_version[0]
if version != latest_version:
cursor.close()
return '6', token # 版本不匹配
return "ok", token
# 工具函数 - 检查UserAgent状态
def checkUserAgentStatus(status):
if status == "4":
return status
return None
# 登录接口
@app.route('/doLogin', methods=['POST'])
def doLogin():
cursor = mysql.connection.cursor()
# 获取登录数据
data = request.form
account = data.get('account')
pwd = data.get('password')
# 查询用户信息
cursor.execute("SELECT account, password, state FROM player WHERE account = %s", (account,))
user = cursor.fetchone()
# 验证用户
if not user: # 用户不存在
return '2'
if user[1] != pwd: # 密码错误
return '2'
if user[2] != 1: # 账号状态异常
return '3'
# 生成唯一Token
while True:
token = str(uuid.uuid4())
cursor.execute("SELECT * FROM player WHERE token = %s", (token,))
if not cursor.fetchone():
break
# 更新用户Token和登录时间
cursor.execute(
"UPDATE player SET token = %s, last_login_time = %s WHERE account = %s",
(token, datetime.now(), account)
)
cursor.connection.commit()
cursor.close()
# 返回成功响应和Token
return f"{getSuccessStateCode()}|{token}"
# 登出接口
@app.route('/doLogout', methods=['POST'])
def doLogout():
cursor = mysql.connection.cursor()
# 检查UserAgent
userAgent = request.headers.get('User-Agent')
userAgentStatus, token = checkUserAgent(userAgent)
if checkUserAgentStatus(userAgentStatus):
return checkUserAgentStatus(userAgentStatus)
try:
# 清空用户Token
cursor.execute("UPDATE player SET token = NULL WHERE token = %s", (token,))
mysql.connection.commit()
return '1' # 登出成功
except Exception as e:
print(f"登出错误: {e}")
return '0' # 登出失败
finally:
cursor.close()
if __name__ == '__main__':
app.run(host='0.0.0.0',debug=True)
