骑砍1成就系统逆向研究

Glacier

本帖原本在我的个人博客，在原帖上面观看体验更佳
https://flacier.us.kg/骑砍1成就系统逆向研究

问题描述
Mount & Blade: Warband（骑马与砍杀：战团）的macOS版本自 2014 年上线起便无法解锁任意 Steam 成就，而 Windows 版一切正常。多年来社区一直都有人在说无法正常解锁成就，但并没有任何实际有效解决方案，基本上已经可以判断为就是macOS版本本身不支持，但我还是想深入研究一下根本原因

相关讨论
Not Getting Achievements MacOs | TaleWorlds Forums
Achievements not working [Mac] :: Mount & Blade: Warband Help and Support
I am getting no Steam achievements on MacOS : r/mountandblade
Achievements not being unlocked :: Mount & Blade: Warband Help and Support

问题分析
首先我在创意工坊订阅Achievement grab这个能够解锁所有成就的剧本，在macOS版打开后仍然没有解锁成就，这即可说明就是macOS版本本身的问题

打开macOS版本的 Mount and Blade.app 里面的 Info.plist

1. <?xml version="1.0" encoding="UTF-8"?>

2. <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

3. <plist version="1.0">

4. <dict>

5. <key>BuildMachineOSBuild</key>

6. <string>17G65</string>

7. <key>CFBundleDevelopmentRegion</key>

8. <string>en</string>

9. <key>CFBundleExecutable</key>

10. <string>Mount and Blade</string>

11. <key>CFBundleIconFile</key>

12. <string>[mbwarband]</string>

13. <key>CFBundleIdentifier</key>

14. <string>taleworlds.Mount-and-Blade</string>

15. <key>CFBundleInfoDictionaryVersion</key>

16. <string>6.0</string>

17. <key>CFBundleName</key>

18. <string>Mount and Blade</string>

19. <key>CFBundlePackageType</key>

20. <string>APPL</string>

21. <key>CFBundleShortVersionString</key>

22. <string>1.0</string>

23. <key>CFBundleSignature</key>

24. <string>????</string>

25. <key>CFBundleSupportedPlatforms</key>

26. <array>

27.   <string>MacOSX</string>

28. </array>

29. <key>CFBundleVersion</key>

30. <string>1</string>

31. <key>DTCompiler</key>

32. <string>com.apple.compilers.llvm.clang.1_0</string>

33. <key>DTPlatformBuild</key>

34. <string>9F2000</string>

35. <key>DTPlatformVersion</key>

36. <string>GM</string>

37. <key>DTSDKBuild</key>

38. <string>17E189</string>

39. <key>DTSDKName</key>

40. <string>macosx10.13</string>

41. <key>DTXcode</key>

42. <string>0941</string>

43. <key>DTXcodeBuild</key>

44. <string>9F2000</string>

45. <key>LSApplicationCategoryType</key>

46. <string>public.app-category.role-playing-games</string>

47. <key>LSMinimumSystemVersion</key>

48. <string>10.9</string>

49. <key>NSHumanReadableCopyright</key>

50. <string>Copyright © 2014 TaleWorlds Entertainment. All rights reserved.</string>

51. <key>NSMainNibFile</key>

52. <string>MainMenu</string>

53. <key>NSPrincipalClass</key>

54. <string>NSApplication</string>

55. <key>UIDeviceFamily</key>

56. <array>

57.   <integer>1</integer>

58.   <integer>2</integer>

59. </array>

60. </dict>

61. </plist>

复制代码

BuildMachineOSBuild=17G65（macOS 10.13.6 High Sierra），DTPlatformBuild=9F2000＋DTCompiler=com.apple.compilers.llvm.clang.1_0指向 Xcode 9.4 时代的 Clang 工具链，时间差不多是2018年左右

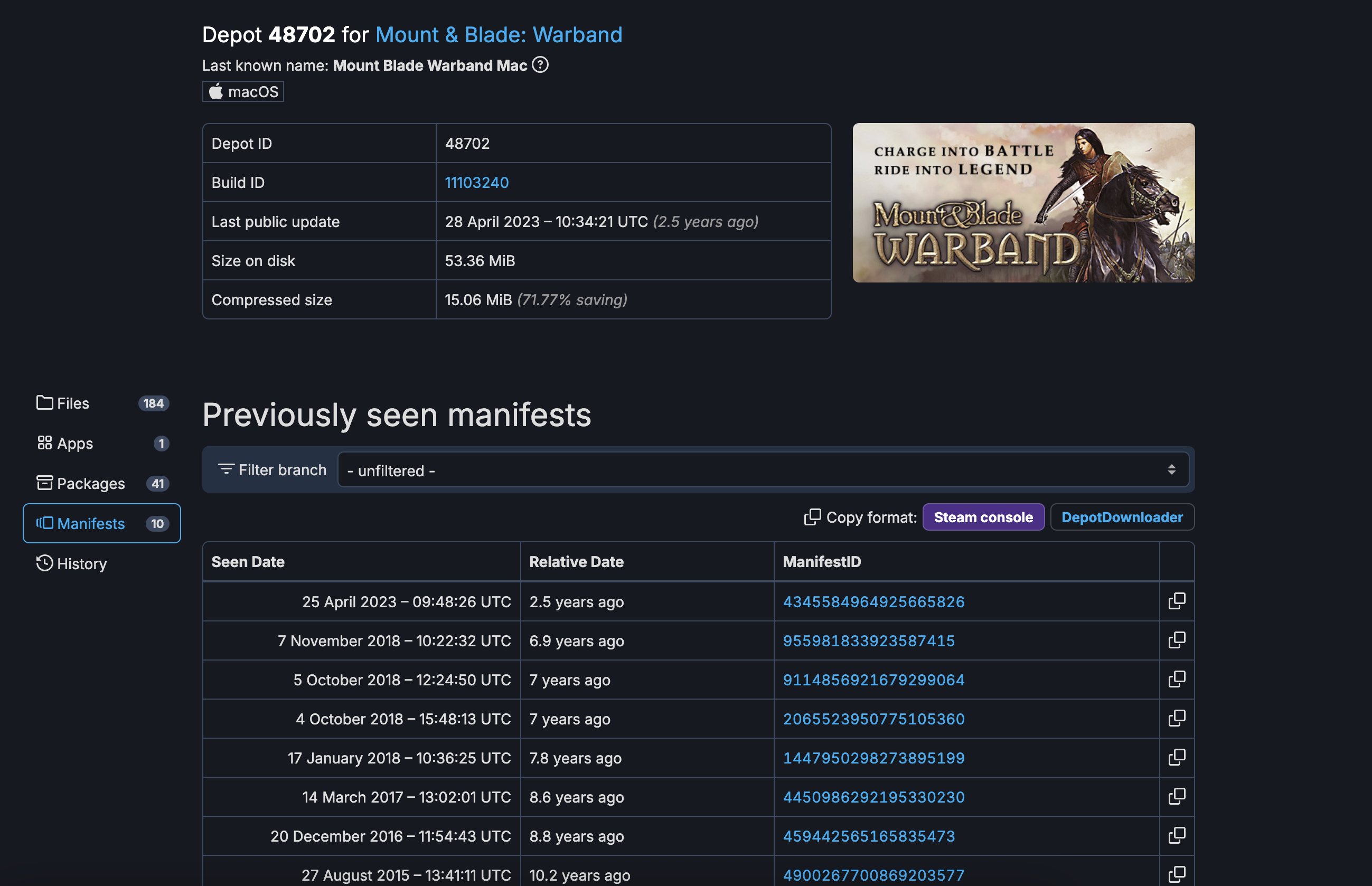

从SteamDB上其实也能看到最近两次的更新，最近一次是2023年，但内容都是DLC相关的，再上一次就是2018年，由此可见后面基本上也是不可能再去管了

steamdb

操作码分析
通过创意工坊的Achievement grab剧本，可以直接定位到战团脚本引擎用于解锁成就的内部指令：操作码 372

在 menus.txt 中可以看到连续的调用样例：

1. 372 1 1

2. 372 1 2

3. ...

4. 372 1 80

复制代码

由此可以得出：

• 372 是用于成就的脚本操作码
• 形如 372 1 N：中间的 1 表示参数个数，N=1..80 为成就数字 ID（枚举见 module_constants.py）
• 引擎将数字 ID 映射为字符串成就 ID（如 HOLY_DIVER、GET_UP_STAND_UP 等），随后调用 Steam 成就接口解锁并 StoreStats 持久化


在官方 Module System 1.171 源码中也有明确定义：

header_operations.py

1. get_achievement_stat = 370 # (get_achievement_stat, <destination>, <achievement_id>, <stat_index>),

2. set_achievement_stat = 371 # (set_achievement_stat, <achievement_id>, <stat_index>, <value>),

3. unlock_achievement   = 372 # (unlock_achievement, <achievement_id>),

复制代码

由此可知 372 即为解锁成就的操作码，1 后面的数字为achievement_id

module_constants.py（将成就定义为 1..80 的枚举）

1. # NORMAL ACHIEVEMENTS

2.

3. ACHIEVEMENT_NONE_SHALL_PASS = 1,

4. ACHIEVEMENT_MAN_EATER = 2,

5. ACHIEVEMENT_THE_HOLY_HAND_GRENADE = 3,

6. ACHIEVEMENT_LOOK_AT_THE_BONES = 4,

7. ACHIEVEMENT_KHAAAN = 5,

8. ACHIEVEMENT_GET_UP_STAND_UP = 6,

9. ACHIEVEMENT_BARON_GOT_BACK = 7,

10. ACHIEVEMENT_BEST_SERVED_COLD = 8,

11. ACHIEVEMENT_TRICK_SHOT = 9,

12. ACHIEVEMENT_GAMBIT = 10,

13. ACHIEVEMENT_OLD_SCHOOL_SNIPER = 11,

14. ACHIEVEMENT_CALRADIAN_ARMY_KNIFE = 12,

15. ACHIEVEMENT_MOUNTAIN_BLADE = 13,

16. ACHIEVEMENT_HOLY_DIVER = 14,

17. ACHIEVEMENT_FORCE_OF_NATURE = 15,

18.

19. # SKILL RELATED ACHIEVEMENTS

20.

21. ACHIEVEMENT_BRING_OUT_YOUR_DEAD = 16,

22. ACHIEVEMENT_MIGHT_MAKES_RIGHT = 17,

23. ACHIEVEMENT_COMMUNITY_SERVICE = 18,

24. ACHIEVEMENT_AGILE_WARRIOR = 19,

25. ACHIEVEMENT_MELEE_MASTER = 20,

26. ACHIEVEMENT_DEXTEROUS_DASTARD = 21,

27. ACHIEVEMENT_MIND_ON_THE_MONEY = 22,

28. ACHIEVEMENT_ART_OF_WAR = 23,

29. ACHIEVEMENT_THE_RANGER = 24,

30. ACHIEVEMENT_TROJAN_BUNNY_MAKER = 25,

31.

32. # MAP RELATED ACHIEVEMENTS

33.

34. ACHIEVEMENT_MIGRATING_COCONUTS = 26,

35. ACHIEVEMENT_HELP_HELP_IM_BEING_REPRESSED = 27,

36. ACHIEVEMENT_SARRANIDIAN_NIGHTS = 28,

37. ACHIEVEMENT_OLD_DIRTY_SCOUNDREL = 29,

38. ACHIEVEMENT_THE_BANDIT = 30,

39. ACHIEVEMENT_GOT_MILK = 31,

40. ACHIEVEMENT_SOLD_INTO_SLAVERY = 32,

41. ACHIEVEMENT_MEDIEVAL_TIMES = 33,

42. ACHIEVEMENT_GOOD_SAMARITAN = 34,

43. ACHIEVEMENT_MORALE_LEADER = 35,

44. ACHIEVEMENT_ABUNDANT_FEAST = 36,

45. ACHIEVEMENT_BOOK_WORM = 37,

46. ACHIEVEMENT_ROMANTIC_WARRIOR = 38,

47.

48. # POLITICALLY ORIENTED ACHIEVEMENTS

49.

50. ACHIEVEMENT_HAPPILY_EVER_AFTER = 39,

51. ACHIEVEMENT_HEART_BREAKER = 40,

52. ACHIEVEMENT_AUTONOMOUS_COLLECTIVE = 41,

53. ACHIEVEMENT_I_DUB_THEE = 42,

54. ACHIEVEMENT_SASSY = 43,

55. ACHIEVEMENT_THE_GOLDEN_THRONE = 44,

56. ACHIEVEMENT_KNIGHTS_OF_THE_ROUND = 45,

57. ACHIEVEMENT_TALKING_HELPS = 46,

58. ACHIEVEMENT_KINGMAKER = 47,

59. ACHIEVEMENT_PUGNACIOUS_D = 48,

60. ACHIEVEMENT_GOLD_FARMER = 49,

61. ACHIEVEMENT_ROYALITY_PAYMENT = 50,

62. ACHIEVEMENT_MEDIEVAL_EMLAK = 51,

63. ACHIEVEMENT_CALRADIAN_TEA_PARTY = 52,

64. ACHIEVEMENT_MANIFEST_DESTINY = 53,

65. ACHIEVEMENT_CONCILIO_CALRADI = 54,

66. ACHIEVEMENT_VICTUM_SEQUENS = 55,

67.

68. # MULTIPLAYER ACHIEVEMENTS

69.

70. ACHIEVEMENT_THIS_IS_OUR_LAND = 56,

71. ACHIEVEMENT_SPOIL_THE_CHARGE = 57,

72. ACHIEVEMENT_HARASSING_HORSEMAN = 58,

73. ACHIEVEMENT_THROWING_STAR = 59,

74. ACHIEVEMENT_SHISH_KEBAB = 60,

75. ACHIEVEMENT_RUIN_THE_RAID = 61,

76. ACHIEVEMENT_LAST_MAN_STANDING = 62,

77. ACHIEVEMENT_EVERY_BREATH_YOU_TAKE = 63,

78. ACHIEVEMENT_CHOPPY_CHOP_CHOP = 64,

79. ACHIEVEMENT_MACE_IN_YER_FACE = 65,

80. ACHIEVEMENT_THE_HUSCARL = 66,

81. ACHIEVEMENT_GLORIOUS_MOTHER_FACTION = 67,

82. ACHIEVEMENT_ELITE_WARRIOR = 68,

83.

84. # COMBINED ACHIEVEMENTS

85.

86. ACHIEVEMENT_SON_OF_ODIN = 69,

87. ACHIEVEMENT_KING_ARTHUR = 70,

88. ACHIEVEMENT_KASSAI_MASTER = 71,

89. ACHIEVEMENT_IRON_BEAR = 72,

90. ACHIEVEMENT_LEGENDARY_RASTAM = 73,

91. ACHIEVEMENT_SVAROG_THE_MIGHTY = 74,

92.

93. ACHIEVEMENT_MAN_HANDLER = 75,

94. ACHIEVEMENT_GIRL_POWER = 76,

95. ACHIEVEMENT_QUEEN = 77,

96. ACHIEVEMENT_EMPRESS = 78,

97. ACHIEVEMENT_TALK_OF_THE_TOWN = 79,

98. ACHIEVEMENT_LADY_OF_THE_LAKE = 80,

复制代码

触发器代码

module_game_menus.py

1. (unlock_achievement, ACHIEVEMENT_LOOK_AT_THE_BONES)

2. (set_achievement_stat, ACHIEVEMENT_THE_BANDIT, 1, ":number_of_caravan_raids")

3. (get_achievement_stat, ":v", ACHIEVEMENT_BEST_SERVED_COLD, 0)

复制代码

菜单事件触发即刻执行
第一行解锁一次性成就
第二行把本地变量:number_of_caravan_raids写入成就THE_BANDIT的统计项index=1
第三行把成就BEST_SERVED_COLD的index=0进度读入变量:v，便于后续判断或展示

module_simple_triggers.py

1. (unlock_achievement, ACHIEVEMENT_ABUNDANTFEAST)

复制代码

simple_trigger用于周期/条件性的集中检查，条件满足时统一解锁，避免在多处逻辑里重复判断与调用

module_scripts.py

1. (get_achievement_stat, ":s", ACHIEVEMENT_SHISH_KEBAB, 0)

2. (val_add, ":s", 1)

3. (set_achievement_stat, ACHIEVEMENT_SHISH_KEBAB, 0, ":s")

4. (unlock_achievement, ACHIEVEMENT_SHISH_KEBAB)

复制代码

成就进度更新，先读当前进度→累加→回写
达到阈值时再解锁

通过IDA也能找到 Windows 版本的导入与关键函数地址，作为上述机制的技术依据

Windows 版本数据（mb_warband.exe）

符号	地址
SteamAPI_Init	0x7be60c
SteamUserStats	0x7be5f0
SteamUser	0x7be624
SteamAPI_RunCallbacks	0x7be608
SteamAPI_Shutdown	0x7be618
SteamAPI_RestartAppIfNecessary	0x7be61c
SteamClient	0x7be610
SteamUtils	0x7be5f8
SteamAPI_RegisterCallback	0x7be5fc
SteamAPI_RegisterCallResult	0x7be600
SteamAPI_UnregisterCallback	0x7be5f4
SteamAPI_UnregisterCallResult	0x7be628
SteamGameServer_Init	0x7be5ec
SteamGameServer_RunCallbacks	0x7be614
SteamGameServer_Shutdown	0x7be620
SteamUGC	0x7be630

成就系统关键函数

功能	地址
成就管理器构造函数	0x49BF40
获取用户统计	0x49B410
成就解锁回调	0x49B4B0
接收Steam统计	0x49BCE0

成就相关字符串

字符串	地址
"Achievement '%s' unlocked!"	0x80e66c
"Achievement '%s' progress callback"	0x80e63c
"Received stats and achievements from Steam"	0x80e6e4

成就ID字符串地址

成就ID[/td[td]地址
GET_UP_STAND_UP	0x80ebf8
TALKING_HELPS	0x80e944
GOOD_SAMARITAN	0x80ea10
HELP_HELP_IM_BEING_REPRESSED	0x80ea84
COMMUNITY_SERVICE	0x80eb2c
HOLY_DIVER	0x80eb78
FORCE_OF_NATURE	0x80eb68
MAN_EATER	0x80ec3c
BARON_GOT_BACK	0x80ebe8
BEST_SERVED_COLD	0x80ebd4
MOUNTAIN_BLADE	0x80eb84
THE_HOLY_HAND_GRENADE	0x80ec24
CALRADIAN_ARMY_KNIFE	0x80eb94
KHAAAN	0x80ec08
GAMBIT	0x80ebc0
OLD_SCHOOL_SNIPER	0x80ebac
TRICK_SHOT	0x80ebc8
DEXTEROUS_DASTARD	0x80eaf8
MELEE_MASTER	0x80eb0c
MIGHT_MAKES_RIGHT	0x80eb40
AGILE_WARRIOR	0x80eb1c
ART_OF_WAR	0x80ead8
MIND_ON_THE_MONEY	0x80eae4
THE_RANGER	0x80eacc
BRING_OUT_YOUR_DEAD	0x80eb54
TROJAN_BUNNY_MAKER	0x80eab8
HAPPILY_EVER_AFTER	0x80e9bc
HEART_BREAKER	0x80e9ac
PUGNACIOUS_D	0x80e928
OLD_DIRTY_SCOUNDREL	0x80ea5c
I_DUB_THEE	0x80e988
ROMANTIC_WARRIOR	0x80e9d0
MORALE_LEADER	0x80ea00
MIGRATING_COCONUTS	0x80eaa4
SARRANIDIAN_NIGHTS	0x80ea70
ABUNDANT_FEAST	0x80e9f0
BOOK_WORM	0x80e9e4
MEDIEVAL_TIMES	0x80ea20
LOOK_AT_THE_BONES	0x80ec10
GOLD_FARMER	0x80e91c
SOLD_INTO_SLAVERY	0x80ea30
THE_BANDIT	0x80ea50
GOT_MILK	0x80ea44
ROYALITY_PAYMENT	0x80e908
MEDIEVAL_EMLAK	0x80e8f8
NONE_SHALL_PASS	0x80ec48
AUTONOMOUS_COLLECTIVE	0x80e994
CALRADIAN_TEA_PARTY	0x80e8e4
CONCILIO_CALRADI	0x80e8bc
KINGMAKER	0x80e938
MANIFEST_DESTINY	0x80e8d0
THE_GOLDEN_THRONE	0x80e96c
VICTUM_SEQUENS	0x80e8ac
TALK_OF_THE_TOWN	0x80e724
MAN_HANDLER	0x80e754
SASSY	0x80e980
QUEEN	0x80e740
GIRL_POWER	0x80e748
LADY_OF_THE_LAKE	0x80e710
EMPRESS	0x80e738
KNIGHTS_OF_THE_ROUND	0x80e954
CHOPPY_CHOP_CHOP	0x80e804
MACE_IN_YER_FACE	0x80e7f0
THE_HUSCARL	0x80e7e4
THROWING_STAR	0x80e860
SPOIL_THE_CHARGE	0x80e884
SHISH_KEBAB	0x80e854
HARASSING_HORSEMAN	0x80e870
EVERY_BREATH_YOU_TAKE	0x80e818
ELITE_WARRIOR	0x80e7bc
GLORIOUS_MOTHER_FACTION	0x80e7cc
LAST_MAN_STANDING	0x80e830
THIS_IS_OUR_LAND	0x80e898
RUIN_THE_RAID	0x80e844
SON_OF_ODIN	0x80e7b0
IRON_BEAR	0x80e788
KASSAI_MASTER	0x80e794
SVAROG_THE_MIGHTY	0x80e760
KING_ARTHUR	0x80e7a4
LEGENDARY_RASTAM	0x80e774

macOS 版本
实测 macOS 主程序（Mount and Blade.app/Contents/MacOS/Mount and Blade，x86_64，基址 0x100000000）在 otool -L 中确实列出了 @rpath/libsteam_api.dylib，bundle 内也能在 Contents/Resources/ 找到同名动态库libsteam_api.dylib

但用 IDA 检查导入表与字符串后可以确认，主程序没有任意 SteamAPI_* 或 ISteamUserStats 等符号引用，也搜不到 SetAchievement、StoreStats 或 80 个成就 ID 的字符串，甚至没有 dlopen或dlsym 的动态加载痕迹，只有一些通用文本（如 steam_id、ui_authenticating_with_steam、(Steam Workshop)）以及 @rpath/libsteam_api.dylib 字符串本体（无交叉引用）

功能应该就是对应了创意工坊相关和Shift+Tab的游戏内覆盖功能吧

这说明 macOS 版虽然把 Steam 库随包带上并在加载命令里声明了依赖，但实际上并未在代码路径中调用成就相关接口，同时缺少脚本操作码 372 的处理逻辑，成就系统在该构建目标中处于未启用状态

所以目前看来这个问题是解决不了了，除非T社给源码

1. steamapps/common/MountBlade Warband

2. ❯ otool -L "Mount and Blade.app/Contents/MacOS/Mount and Blade"

3.

4. Mount and Blade.app/Contents/MacOS/Mount and Blade:

5.         /usr/lib/libcurl.4.dylib (compatibility version 7.0.0, current version 9.0.0)

6.         @rpath/libsteam_api.dylib (compatibility version 1.0.0, current version 1.0.0)

7.         @rpath/libfmodex.dylib (compatibility version 1.0.0, current version 1.0.0)

8.         @rpath/GLEW.framework/Versions/2.1.0/GLEW (compatibility version 2.1.0, current version 2.1.0)

9.         @rpath/SDL2.framework/Versions/A/SDL2 (compatibility version 1.0.0, current version 8.0.0)

10.         /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa (compatibility version 1.0.0, current version 22.0.0)

11.         /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL (compatibility version 1.0.0, current version 1.0.0)

12.         /usr/lib/libc++.1.dylib (compatibility version 1.0.0, current version 400.9.0)

13.         /usr/lib/libSystem.B.dylib (compatibility version 1.0.0, current version 1252.50.4)

14.         /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices (compatibility version 1.0.0, current version 822.31.0)

复制代码

最终方案

上虚拟机Parallels Desktop或者CrossOver运行Windows版吧

英勇的苹果

macOS上玩游戏,现在感觉比Linux上还麻烦……
